Dome vs Bullet cameras

Dome Vs Bullet cameras is becoming a heated debate in Orlando. When protecting a company’s assets, no investment is more beneficial in terms of return on investment than purchasing a security camera system. IP cameras may assist you in safeguarding your assets, data, and intellectual property by acting not only as a deterrent but also as a way of recording evidence in the case of a break-in. The knowledge about Dome Vs Bullet cameras will help us understand the entire matter.

However, picking the ideal version to represent your brand can be challenging, especially before you have informed yourself about the many kinds of cameras that are accessible, as well as the benefits and drawbacks of Dome Vs Bullet cameras.

In this piece, we are going to walk you over the fundamentals of the Dome Vs Bullet cameras that are now accessible, which are known as dome cameras and bullet cameras, respectively.

What exactly is a “Bullet Camera”, though?

In the debate between Dome Vs Bullet cameras, we will first talk about bullet cameras. Bcause of their long form, which enables these cameras to fit a more telescopic kind of zoom lens, we define them as “bullet cameras.” Varifocal bullet cameras often include such a lens, which allows them to produce high-quality images even when the zoom level people set to its maximum and the camera is placed a considerable distance away from the subject of interest. However, this does have the effect of causing the field of vision to be necessarily more restricted than it would be with a camera that had a less telescopic lens (like a dome camera, for example).

When comparing Dome Vs Bullet cameras, the combination of an extensive zoom range and a narrower field of view (which, by the way, is one of the things that helps to preserve image quality when zoomed in further) makes bullet cameras particularly adept at capturing detail at critical locations. For instance, when aimed directly at points of entry and exit to a building, bullet cameras are particularly effective at doing so.

The classification and models

A little bullet camera that is stationary, set against a tiled background
We may mount a telescopic lens within a bullet camera’s body due to its elongated shape.
Advantages of Using Bullet Cameras
High capacity for zooming in and out
Maintains a high level of picture quality even when zoomed in.
Frequently resistant to both vandalism and the elements.
A powerful deterrent, a conspicuous appearance
A strong showing in the IR spectrum
Negative Aspects of Bullet Cameras
Reduced peripheral vision and increased blind spots
Conspicuous (may be avoided by determined burglars) (can be avoided by determined burglars)
NetXL Pick: The Grundig GD-CI-BP4637T
This 5MP varifocal bullet camera is an excellent bullet CCTV camera since it has all of the greatest attributes. This camera’s powerful 4x optical zoom, outstanding picture quality across the entire zoom range, IK10 impact protection, and full weatherproofing make it an easy choice for companies or installers seeking cost-effective security that doesn’t skimp on features. The infrared and low-light performance of the GD-CI-BP4637T is awe-inspiring because it can surpass cameras that cost twice as much as this one.

grundig 5mp bullet camera
The BP4637T offers performance that remarkably belies its low cost.
What kind of camera is a dome?
Because some cameras work like domes, it is straightforward to identify them. Unlike bullet cameras, these models are more square-shaped and compact, and a glass dome covers the camera’s components.

The curious case of Dome cameras

Now in the Dome Vs Bullet cameras, we will talk about Dome cameras. Dome IP cameras, as opposed to bullet IP cameras, are known for their ability to provide a broad field of view, which gives a fantastic overview of a big area with only a small amount of necessary modification. Dome cameras are often relatively discrete and have a low profile, which allows them to blend in very well with the shape of a building.

PTZ cameras, which are more expensive and powerful than dome cameras, offer the most significant features of both types of cameras—oversight over a large area and a high-range zoom with superb picture quality. On the other hand, we should not mistake Dome cameras for PTZ cameras. But we are here to talk about Dome Vs Bullet cameras.

Recent years have seen the development of a new generation of dome cameras. Turret cameras, often known by their acronym, have a lens and an infrared sensor placed in separate housings and do not have a protective glass dome over them. This either decreases or eliminates IR bounceback from the interior of the glass dome, which results in superior performance in low-light conditions at the expense of reduced resilience to impact and vandalization. Some manufacturers still need to include turret cameras in their product offerings, and other manufacturers have experimented with various approaches to accomplish the same.

Installation and Mounting difference

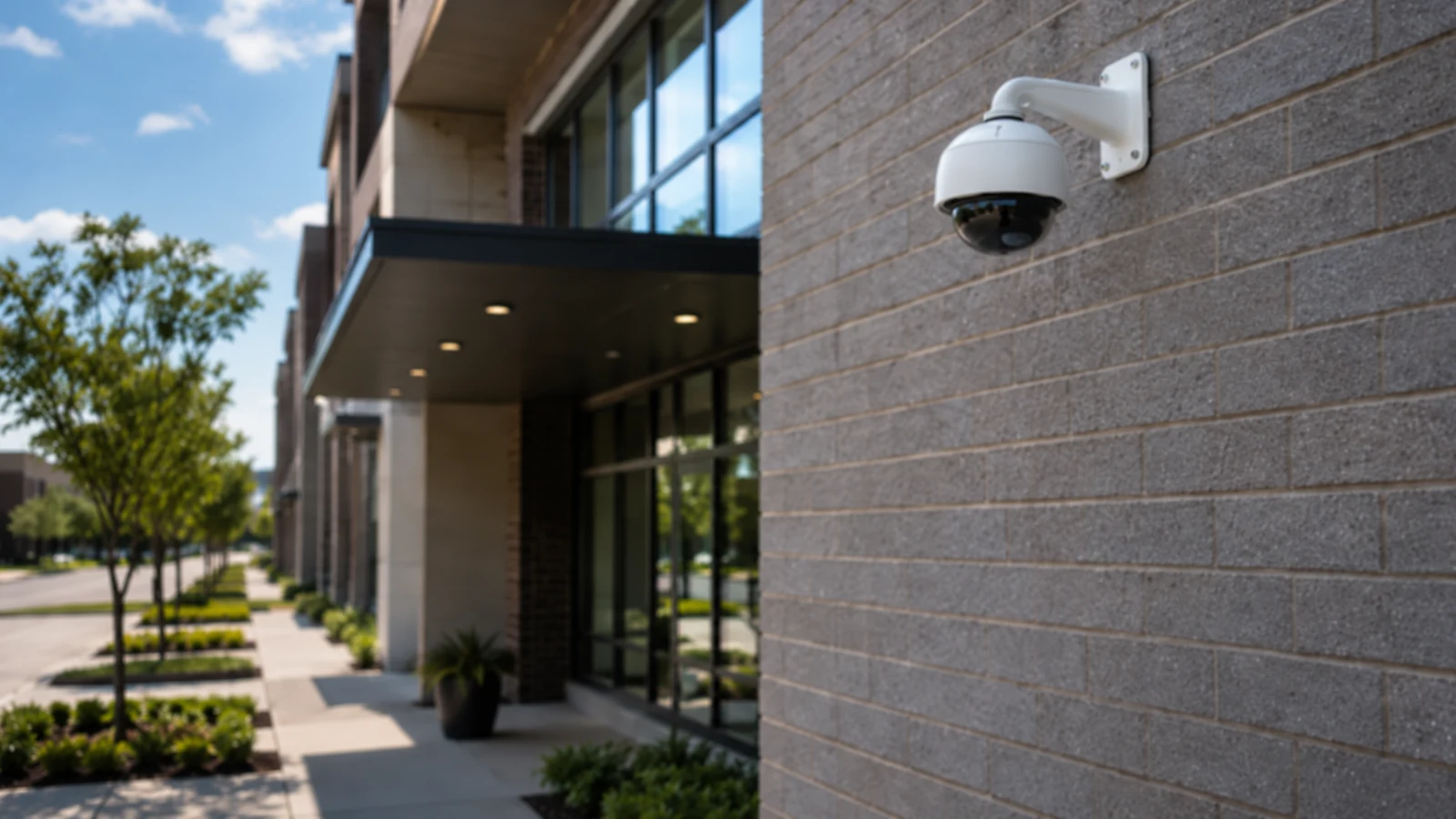

mounting bracket for the dome camera on the wall
Mounting brackets or the ceiling are the only options for dome cameras that do not have a three-axis gimbal.
Dome cameras have a few advantages.
More excellent area coverage with fewer cameras while maintaining a wider field of view
Is it possible to put it on the ceiling (if 3-axis gimbal)
It is possible to capture robbers by being stealthy and keeping a low profile.
Dome cameras have a few drawbacks.
At the risk of deterioration if exposed to excessive humidity or adverse weather conditions (condensation)
problems with IR performance in specific models
Initial installation and orientation are more complex.
NetXL Pick: The Grundig GD-CI-AP4617W
This Grundig 4MP dome camera is a departure from the conventional design of dome cameras, which is the feature that stands out the most. Because this model’s infrared (IR) sensors are located outside the tiny glass dome, it does not suffer from IR bounceback. This is something that turret cameras, which people typically sell at a considerably higher price range, have as one of their primary selling points. Because of this, the AP4617W possesses an IR performance that is rather remarkable considering its cost. It has a fixed focal length, which means it does not have optical zoom; moreover, this should be fine when considering the primary uses for dome cameras. Additionally, digital zoom is available for use in situations where you need to look closely at anything.

grundig 4mp dome IP camera
To improve the performance of this dome camera from Grundig, we moved the infrared sensors outside of the glass dome.
The Primary Distinctions Between Bullet and Dome Cameras
Effectiveness in Various Areas
Because of their distinct structural characteristics, dome and bullet cameras are best suited for use in different environments. Because of their protruding form, bullet cameras are more noticeable than other cameras, as briefly covered earlier. Even in settings where there is not a lot of light, a bullet camera will cast a shadow against the side of a structure. This makes it obvious, even to those looking from a distance, that any probable avenues of entry are being monitored.

Features of the popular dome cameras

In addition, the most efficient use of bullet cameras is for monitoring smaller and more concentrated regions. Although Dome cameras have the advantage of a more expansive field of vision, they typically do not have the zoom capabilities of bullet cameras. Additionally, once the bullet cameras have been mounted, repositioning them is a somewhat laborious process. Because of these limitations, bullet cameras are most valuable for keeping a close eye on a single strategic place over an extended period.

Dome cameras have a naturally broader field of vision, which makes the initial setup procedure more forgiving, even though it might be difficult to adjust these cameras. Dome cameras are fantastic for monitoring a more significant area at a lesser resolution as they have a broader field of view than other cameras. You can efficiently scan a more extensive region with only one camera. Still, the level of detail in any part of the image will be lesser than it would be with a bullet camera directly targeting that place.

Dome cameras have a far smaller profile than bullet cameras, allowing them to blend into their surroundings considerably better in low-light conditions. As a consequence, dome cameras may help catch thieves in the act. Because of this, they can be more successful when positioned inside the perimeter of a region. In contrast, bullet cameras may be used more frequently as a deterrent on the exterior of that area.

Installation Process

Both bullet and dome cameras have comparable setup procedures during the installation process. You have a few alternatives when it comes to mounting IP cameras since there are a variety of mounting brackets and junction boxes available for purchase. However, in most cases, you’ll be able to screw the camera’s base straight into the surface you’re placing it on. If you need to, you can use wall plugs for brick or plasterboard.

Once we put them in, Dome cameras can be more difficult to orient than bullet cameras. You’ll need to remove the glass dome and manually spin the lens in the other direction until it’s in the correct position. If you plan to place the dome camera on a wall, you must confirm that it is equipped with a three-axis gimbal. In this method, rather than simply panning the camera horizontally, you will be able to rotate the lens itself to reorient the camera so that we display the picture in the correct orientation.

Camera Range

In Dome Vs, Bullet cameras, both dome and bullet cameras come with a selection of lenses, including fixed and varifocal options. If you want to zoom in on something, you need varifocal kinds. Examine the range of the lens length to estimate the degree of magnification that will be applied to the final image.

A varifocal bullet camera is the finest option to get maximum range while preserving the image quality to the greatest extent feasible. Why? If everything else stays the same, the picture quality of zoomed-in photographs taken with cameras that have a narrower field of vision will be preserved better.

In conclusion, Dome Vs Bullet cameras have distinct benefits, varying wildly depending on the circumstances. To provide the highest level of safety, the vast majority of installations will need to use both bullet and dome cameras.

If you are interested in finding out more about IP cameras, please do not hesitate to get in touch with us with any additional questions that you may have, or feel free to click straight to the IP Cameras products part of our website.
